Indicative guidance for planning an effective lecture theatre seating auditorium environment*

Auditoria are often required to fulfil a number of purposes and audiences should be able to see and hear every element of a presentation, speech or conference.

With considered and effective planning of a lecture theatre or auditorium these objectives can be met creating a versatile and comfortable resource for organisations and institutions.

Guideline dimensions for lecture theatre seating: The overall seat depth ranges from a minimum of 600mm to a maximum of 720mm

The tipped seat depth ranges from a minimum of 425mm to a maximum of 500mm Back to back seat spacing 760mm Seat width for seats with arms ranges from a minimum of 500mm to a maximum of 750mm Seat width for seats without arms 450mm Armrest width 50mm

Armrest length should coincide with the depth of the tipped seat Seat height ranges from a minimum of 430mm to a maximum of 450mm Armrest height 600mm

Seat back height ranges from a minimum of 800mm to a maximum of 850mm The number of seats in a row is limited by legislation to a maximum of 22 where a gangway exists at either end of the row and 11 seats where there is only a single gangway.





The minimum width of the gangway is 1100mm and objects that may encroach on this such as handrails must be allowed for to ensure that there is a clear 1100mm width to the gangway.

The means of escape for auditoria aims to ensure all audience members can reach a place of safety within 2minutes 30seconds and no-one should have to travel more than 18 metres from their seat to the exit within the auditorium.

From each level of the auditorium two separate exits must be provided for the first 500 seats with an further exit for each additional 250 seats. The minimum total exit width for a lecture theatre accommodating up to 200 people is 2200mm and this rises as the capacity increases.

The gangways can be raked with a maximum incline of 10% with a maximum rake of 8.5% recommended to ensure access for wheelchair users. If the rake is steeper steps spanning the full width of the gangway must be created which have consistent tread and riser dimensions

For general seating the minimum clearway – the distance between the leading edge of the seat and the seat back immediately in front – is 300mm. This distance is based on the leading edge of the seat in upright position for tip-up seats and increases for longer rows of seats.

A guideline row-to-row dimension of 850mm is recommended exceeding the 760mm required by legislation.

The seating density for lecture theatre seating varies depending on the type of seat specified. When assessing the minimum seat dimensions acceptable the area per seat is 0.38m2 however these seats offer a compromised level of comfort and should not be considered as the norm.

At Chart Area Seating we can offer layouts based on different seat programmes to achieve the optimum balance between lecture theatre capacity and audience comfort.

The upholstery of lecture theatre seating should provide comfort and avoid fatigue whilst encouraging attentiveness and the material must conform to fire regulations.

At Chart Area Seating we can advise on fabric options, which will satisfy fire regulations and has been proven to withstand the regular use of audiences. Lecture theatre seating can be equipped with a variety of writing surfaces including writing tablets, pivoting tables, writing benches mounted to the floor or to the seating row adjacent.

‘Anti-panic’ tablets ensure that in a forced evacuation of a lecture theatre the tablets will move out of the way and not cause an obstruction for the exiting audience. Seating can be configured to accommodate wiring to provide power to the audience seats or to carry amplification equipment.

Read our information on the key elements of an effective lecture theatre seating environment as identified by students themselves.

* The legislation and regulations in relation to auditorium and lecture theatre planning can change frequently and the information contained here is intended as an indicative guide only and must not be actioned without further research.

Please contact Chart Area Seating for more information and to discuss your lecture theatre requirements.

spacer panel at chart area seating



spacer redTimber Framed Stacking Chairs

floor fixed tip-up seating from chart area seating

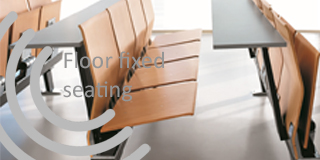

Floor Fixed Chairs - Tip-Up

lecture theatre seating

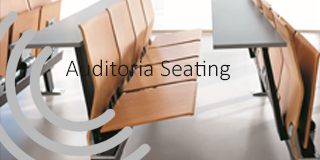

Auditoria Seating
